Mll frame mounts ?
« on: April 06, 2014, 12:59:50 PM »

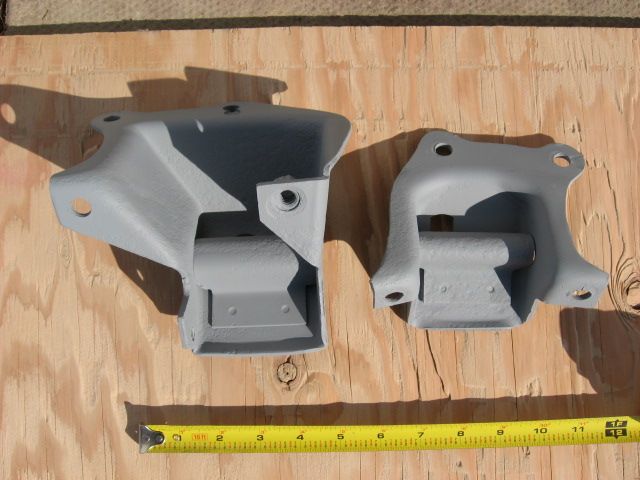

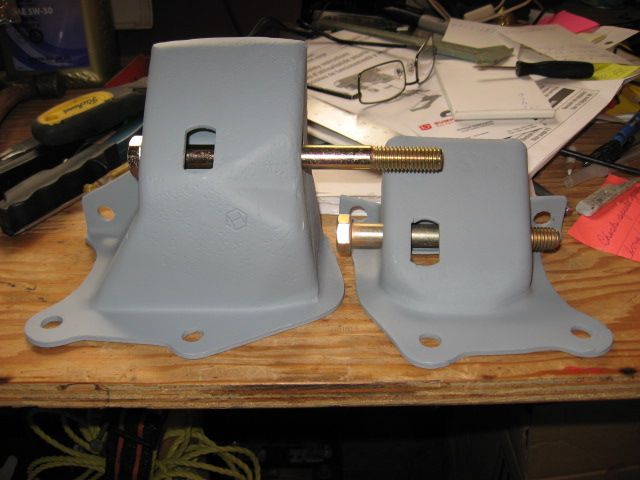

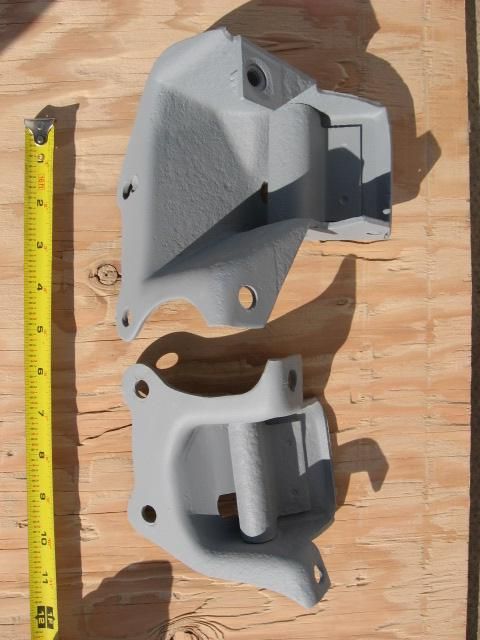

I sand blasted the frame mounts & looked for any part numbers : none.
Anyone know if these look like them ?
If you are not sure, and belong to an Mll forum, could you get them to look at this topic ?
If you need different pictures etc let me know.











The motor mounts that were with it : D5ZA-6B032-BD
I could not find any info on them on line.

The ones that were in my White B2 car : D5ZA-6038-BD
Look much the same. I'll take some measurements & see if there is any difference.
These I can get, though expensive. About $450.00 - $500.00 for a pair.

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #1 on: April 06, 2014, 02:19:04 PM »
Another thing.... due to the difference in size , it would off set the engine an 1 3/4".



Offline Rob3865

  • Pinto Full Member
  • ***
  • Posts: 202
  • FeedBack: +19/-2
  • Gender: Male
  • Another Pinto Driver

  • Total Badges: 5
    Badges: (View All)
    Mobile User Topic Starter Signature Poll Voter Windows User
Re: Mll frame mounts ?
« Reply #2 on: April 06, 2014, 02:36:41 PM »
Yes sir. Those are V8 frame mount brackets. Just like mine. Mine also have no part number, but I KNOW they are V8 mount brackets.

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #3 on: April 06, 2014, 02:58:04 PM »
Which side do they go on ?
Tall one drivers side ?

Offline Rob3865

  • Pinto Full Member
  • ***
  • Posts: 202
  • FeedBack: +19/-2
  • Gender: Male
  • Another Pinto Driver

  • Total Badges: 5
    Badges: (View All)
    Mobile User Topic Starter Signature Poll Voter Windows User
Re: Mll frame mounts ?
« Reply #4 on: April 06, 2014, 05:13:07 PM »
Yes. That is correct.

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #5 on: April 06, 2014, 07:46:41 PM »
That would off set the engine to the right.
Headman Headers wouldn't work. Engine needs to be centered.
No idea on other headers.

People using exhaust manifolds on at least early (71-73) cars wouldn't have room on the right side.

Anyone here used them ?
What did you find for room ?
Any fit problems ?
Drive shaft at an odd angle ?

Offline beaner

  • Pinto Full Member
  • ***
  • Posts: 138
  • FeedBack: +16/-0

  • Total Badges: 5
    Badges: (View All)
    Tenth year Anniversary Topic Starter Poll Voter Windows User Fifth year Anniversary
Re: Mll frame mounts ?
« Reply #6 on: April 06, 2014, 09:37:05 PM »
i have the hooker kit in my 73 and the engine is offset to the pass side with there frame mounts
brad :)

Offline Rob3865

  • Pinto Full Member
  • ***
  • Posts: 202
  • FeedBack: +19/-2
  • Gender: Male
  • Another Pinto Driver

  • Total Badges: 5
    Badges: (View All)
    Mobile User Topic Starter Signature Poll Voter Windows User
Re: Mll frame mounts ?
« Reply #7 on: April 06, 2014, 10:40:49 PM »
I guess I could be mistaken, but it has not been that long since I removed them. I admit my memory ain't what it used to be, but I am almost certain the longer bracket was on the driver's side. They won't bolt on but one way, so it should not be difficult to figure out.

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #8 on: April 07, 2014, 08:52:31 AM »
With these pushing the engine over to the right, you would also have to move the engine farther forward to clear the bell housing / fire wall.

Or cut more out of the fire wall.

I may test fit these in Ugly Yellow later this summer.
Just to cure my curiosity ......then sell them.

Offline Rob3865

  • Pinto Full Member
  • ***
  • Posts: 202
  • FeedBack: +19/-2
  • Gender: Male
  • Another Pinto Driver

  • Total Badges: 5
    Badges: (View All)
    Mobile User Topic Starter Signature Poll Voter Windows User
Re: Mll frame mounts ?
« Reply #9 on: April 07, 2014, 09:56:26 AM »
I will know before then so stay tuned. ;)

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #10 on: April 07, 2014, 10:40:02 AM »
Cool !
Take lots of pictures !

What is the part number on your motor mounts ? Pics ?

Offline Rob3865

  • Pinto Full Member
  • ***
  • Posts: 202
  • FeedBack: +19/-2
  • Gender: Male
  • Another Pinto Driver

  • Total Badges: 5
    Badges: (View All)
    Mobile User Topic Starter Signature Poll Voter Windows User
Re: Mll frame mounts ?
« Reply #11 on: April 07, 2014, 05:07:17 PM »
I don't know the part numbers off the top of my head, but they are original rustang II mounts. I WAS going to use the universal Trans Dapt cross member and ford mounts, but I found the mounts and brackets cheap. The driver's side mount retainer pin bushing had failed and allowed enough movement that the top metal mount bracket separated from the rubber insulator. It didn't tear at all, but simply came "unglued" from the metal if you will. The insulators are still in great shape, so I marked the mount so I could reassemble it correctly, cut the head of the retainer pin off and removed the pin. Then I replaced it with a carriage bolt, slid a poly sway bar link bushing over it and retained it with a flat washer and lock nut. It ain't goin nowhere. The passenger's side is still fine.

Offline Pinturbo75

  • Pinto Sr. Member
  • ****
  • Posts: 722
  • FeedBack: +26/-0
  • Gender: Male

  • Total Badges: 6
    Badges: (View All)
    Topic Starter Signature Tenth year Anniversary Poll Voter Windows User Fifth year Anniversary
Re: Mll frame mounts ?
« Reply #12 on: April 07, 2014, 05:23:24 PM »
It didn't tear at all, but simply came "unglued" from the metal if you will. The insulators are still in great shape, so I marked the mount so I could reassemble it correctly, cut the head of the retainer pin off and removed the pin. Then I replaced it with a carriage bolt, slid a poly sway bar link bushing over it and retained it with a flat washer and lock nut. It ain't goin nowhere. The passenger's side is still fine.



I intentionally did that to my drivers  side mount instead of a solid mount... works great for the last 6 years now....
75 turbo pinto trunk, megasquirt2, 133lb injectors, bv head, precision 6265 turbo, 3" exhaust,bobs log, 8.8, t5,, subframe connectors, 65 mm tb, frontmount ic, traction bars, 255 lph walbro,
73 turbo pinto panel wagon, ms1, 85 lb inj, fmic, holset hy35, 3" exhaust, msd, bov,

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #13 on: April 07, 2014, 06:54:15 PM »
Scroll down to Engine Motor mount . You'll see new motor mounts & frame mounts can still be purchased.

http://www.allclassicmustang.com/1975MustangParts.html

Offline Pinto5.0

  • Pinto Master
  • *****
  • Posts: 1974
  • FeedBack: +77/-0
  • Gender: Male
  • 80 hatch, 76 Wagon, 72 & 73 Sedans, 71 half hatch

  • Total Badges: 7
    Badges: (View All)
    Topic Starter Signature Poll Voter Mobile User Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #14 on: April 07, 2014, 07:35:03 PM »
Scroll down to Engine Motor mount . You'll see new motor mounts & frame mounts can still be purchased.

http://www.allclassicmustang.com/1975MustangParts.html

Those are NOS rubber mounts & used steel ones. They put them on ebay a few times but they just want way too much so they never sell.
'73 Sedan (I'll get to it)
'76 Wagon driver
'80 hatch(Restoring to be my son's 1st car)~Callisto
'71 half hatch (bucket list Pinto)~Ghost
'72 sedan 5.0/T5~Lemon Squeeze

Offline Rob3865

  • Pinto Full Member
  • ***
  • Posts: 202
  • FeedBack: +19/-2
  • Gender: Male
  • Another Pinto Driver

  • Total Badges: 5
    Badges: (View All)
    Mobile User Topic Starter Signature Poll Voter Windows User
Re: Mll frame mounts ?
« Reply #15 on: April 07, 2014, 08:53:23 PM »
No kiddin. You could make your own cheaper.

Offline 71pintoracer

  • Pinto Master
  • *****
  • Posts: 1302
  • FeedBack: +37/-0
  • Gender: Male
  • '71 Pinto 5.0 T-5 = lotsa fun!

  • Total Badges: 8
    Badges: (View All)
    Mobile User Tenth year Anniversary Topic Starter Signature Poll Voter 1000 Posts Fifth year Anniversary Photographer
Re: Mll frame mounts ?
« Reply #16 on: April 08, 2014, 07:47:45 PM »
I made front mounts for mine. Not that hard to do and clears up a lot of needed room. I can take my headers on & off without a problem. Starter also.
If you don't have time to do it right, when will you have time to do it over?

Offline Pinto5.0

  • Pinto Master
  • *****
  • Posts: 1974
  • FeedBack: +77/-0
  • Gender: Male
  • 80 hatch, 76 Wagon, 72 & 73 Sedans, 71 half hatch

  • Total Badges: 7
    Badges: (View All)
    Topic Starter Signature Poll Voter Mobile User Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #17 on: April 08, 2014, 09:16:29 PM »
I'm going to build something like these for mine.



I'll get the engine where I want it with the headers bolted on & then build a set of these. I have urethane leaf spring bushings that fit nicely inside some 1 1/2" OD tubing. The rest is easy. I may use the steel part of the 302 mount that bolts to the engine but I'll toss the rest & make a frame mount & the engine mount.
'73 Sedan (I'll get to it)
'76 Wagon driver
'80 hatch(Restoring to be my son's 1st car)~Callisto
'71 half hatch (bucket list Pinto)~Ghost
'72 sedan 5.0/T5~Lemon Squeeze

Offline Reeves1

  • Pinto Master
  • *****
  • Posts: 2038
  • FeedBack: +104/-0
  • Gender: Male
  • BAWS302

  • Total Badges: 5
    Badges: (View All)
    Topic Starter Signature Fifth year Anniversary Windows User 1000 Posts
Re: Mll frame mounts ?
« Reply #18 on: April 09, 2014, 05:26:48 AM »
Original plan was to make mounts for the B2 sort of like that.
I still have the bushings.
Never did get the seamless pipe for the outside of them though.
Hard to find here.
